Products

Aluminum Rods

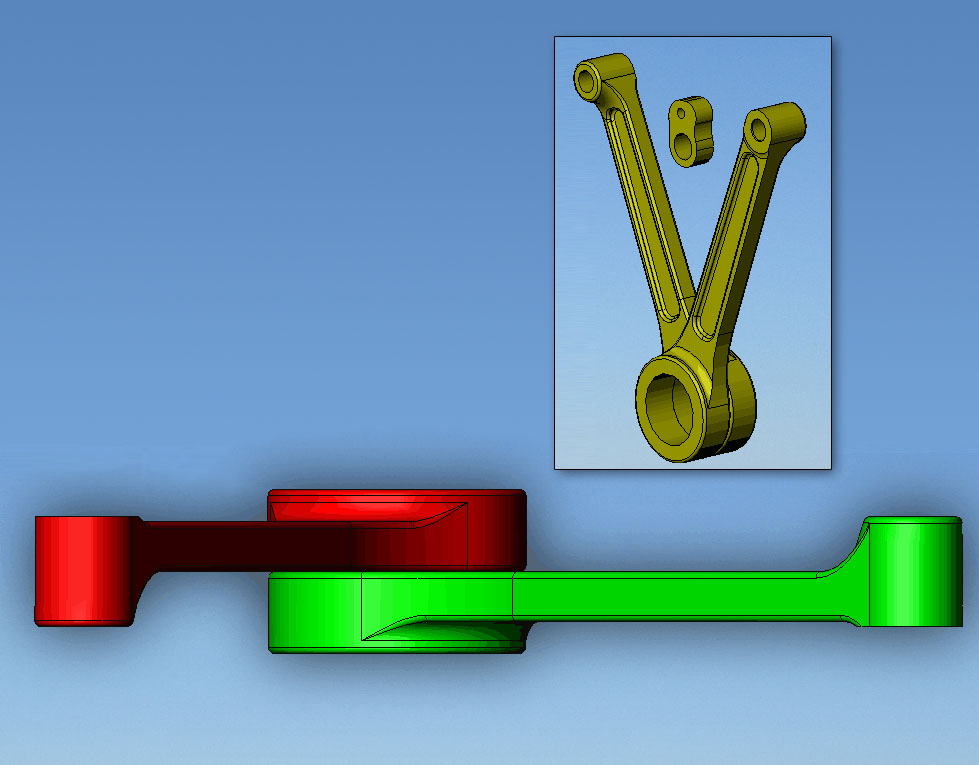

Billet Aluminum Rods - Side by Side Design
Leading edge technology has produced a milestone in the use of Aluminum rods, which replaces the 1910 knife & fork rod for V twins i.e. Indian and Harleys. This new side by side design is lighter by 40% and more economical to manufacture.

Aluminum Cams

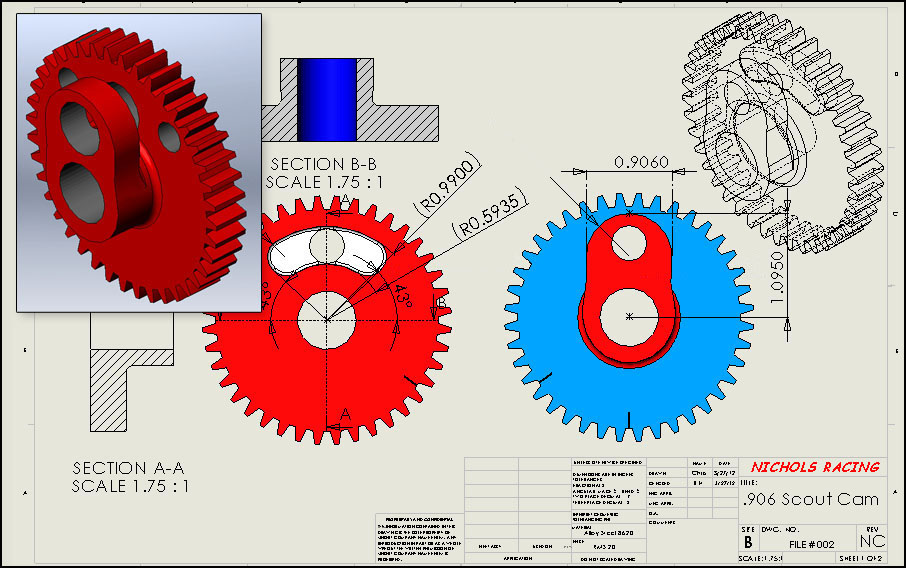

One Piece Balanced Billet Cams
We are the only manufacturer in the world who pre-balances the billet Cam on a CADD 3-D modeling software, thus we are able to calculate the balancing for any lobe. We also include ramps at the start and ending of 25°. This feature absolutely reduces wear on cam bushings and lifter as well as increase horsepower due to the elimination of cam unbalance and bushing friction. All of the above listed bonuses decrease tappet noise.

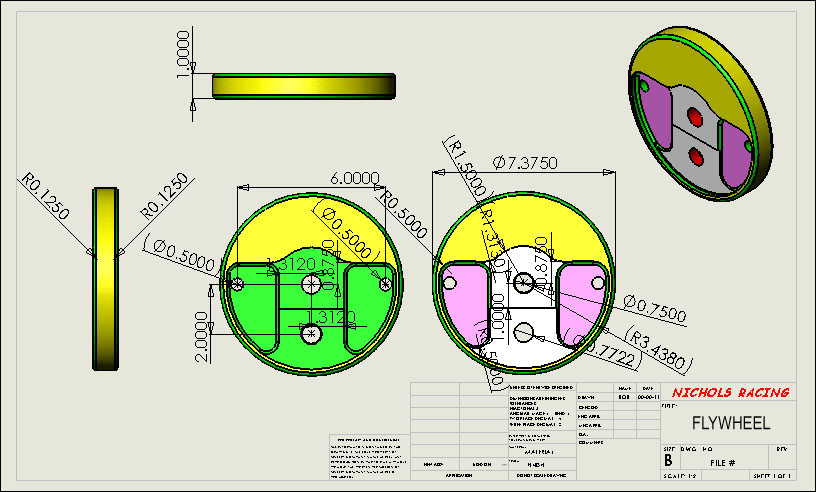

Pre-Balanced Billet Flywheels
Pre-Balanced Billet Flywheels
We are the only manufacturer in the world that pre-balances their flywheels. Our billet flywheels are balanced using a 3D modeling CADD Solidworks software and 4 AXIS CNC machines, this eliminates 6 to 8 hrs of balancing time.

KITS

No 1: Rods and Pistons
BILLET RODS of ALUMINUM ALLOY @ 83,000.000 PSI
Two 2 Configurations of Rods . i.e. wristpin diameters, stock & 15mm
FORGED PISTON with smaller / lighter wristpin
$ 995.00
Add treatment to piston; ceramic on top , Moly on sides & A new black under coating which reduces oil and heat & Gas Porting
Add $ 150.00
No. 2: Rods, Pistons and Cam
BILLET RODS of ALUMINUM ALLOY @ 83,000.000 PSI
Two 2 Configurations of Rods . i.e. wristpin diameters, stock & 15mm
FORGED PISTON with smaller / lighter wristpin
BILLET CAM 3 designs to choose from
$ 1750.00
Add treatment to piston; ceramic on top , Moly on sides & A new black under coating which reduces oil and heat & Gas Porting
Add $ 150.00
No. 3: Rods, Pistons, Cam and Flywheels
BILLET RODS of ALUMINUM ALLOY @ 83,000.000 PSI
Two 2 Configurations of Rods . i.e. wristpin diameters, stock & 15mm
FORGED PISTON with smaller / lighter wristpin
BILLET CAM 3 designs to choose from
BILLET FLYWHEELS PRE-BALANCED
$ 2,250.00
Add treatment to piston; ceramic on top , Moly on sides & A new black under coating which reduces oil and heat & Gas Porting
Add $ 150.00

PARTS

No. 1: BILLET RODS
ALUMINUM ALLOY @ 83,000.000 PSI
Two 2 Configurations of Rods . i.e. wristpin diameters, stock & 15mm
$ 475.00
No. 2: BILLET CAM
One piece gear and cam
$ 425.00
No. 3: BILLET FLYWHEELS
PRE-BALANCED available when you provide the
weight of your rods and piston
$ 625.00
No. 4: CAMS LOBES
three 3 configurations for SCOUTS and CHIEF
A. STREET / HOT ROD (Super Bonneville)
B. RACING
C. LSR. (Land Speed Record)
These will be timed on your gears to 1 degree tolerance
$ 350.00 for 2 Lobes

OTHER RACING UP-GRADES

No. 1: HEADS
Reworked for higher compression and to increased air flow Reworked by welding fill in & machining using special cutter / tooling
$ 325.00
